Dry Power Transformer SHZHEL by SHZHEL
Product details of the dry power transformer
Product Description
SHZHEL dry power transformer is designed using modern technology in conformity with the set industry standards. We offer this product to our clients assuring it is the best in quality. Henan Shengzhi Ruinuo Electrical Equipment Co., Ltd has numbers of production lines to meet large-scale production.

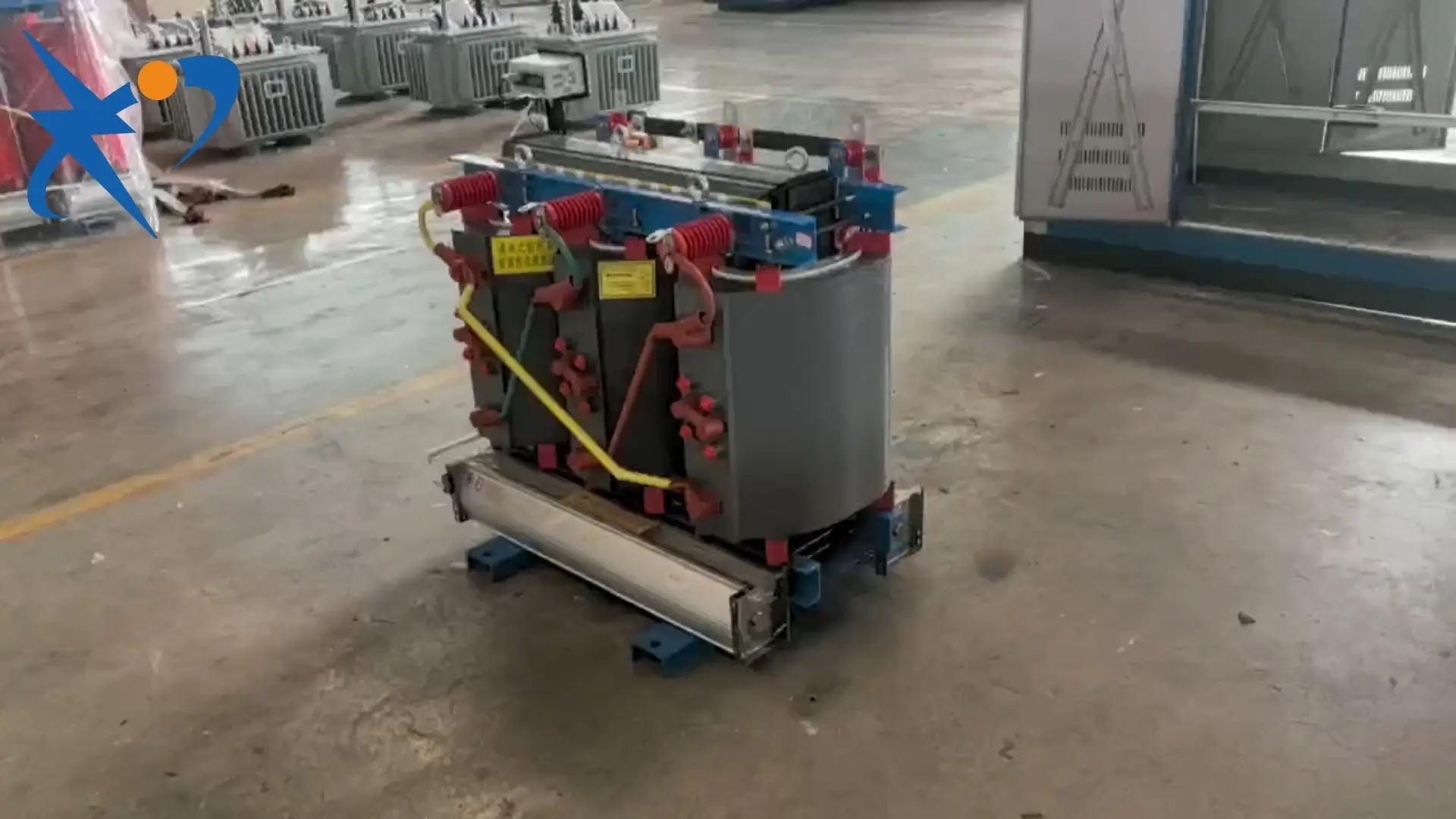

Video
Why choose dry-type: Safe and environmental friendly transformers
• Reduced environmental contamination
• 0-risk of leakage of flammable or contaminating substances
• Environmentally-friendly production
• Well-suited to dump and contaminated areas
• Non-flammable and self-extinguishing
• High resistance to short circuits
• High capacity to support overloads
• High performance in dealing with seismic phenomenon
• Capable of withstanding the most severe rolling and vibrating conditions
• Reduced environmental contamination
• 0-risk of leakage of flammable or contaminating substances
• Environmentally-friendly production
• Well-suited to dump and contaminated areas
• Non-flammable and self-extinguishing
• High resistance to short circuits
• High capacity to support overloads
• High performance in dealing with seismic phenomenon
• Capable of withstanding the most severe rolling and vibrating conditions

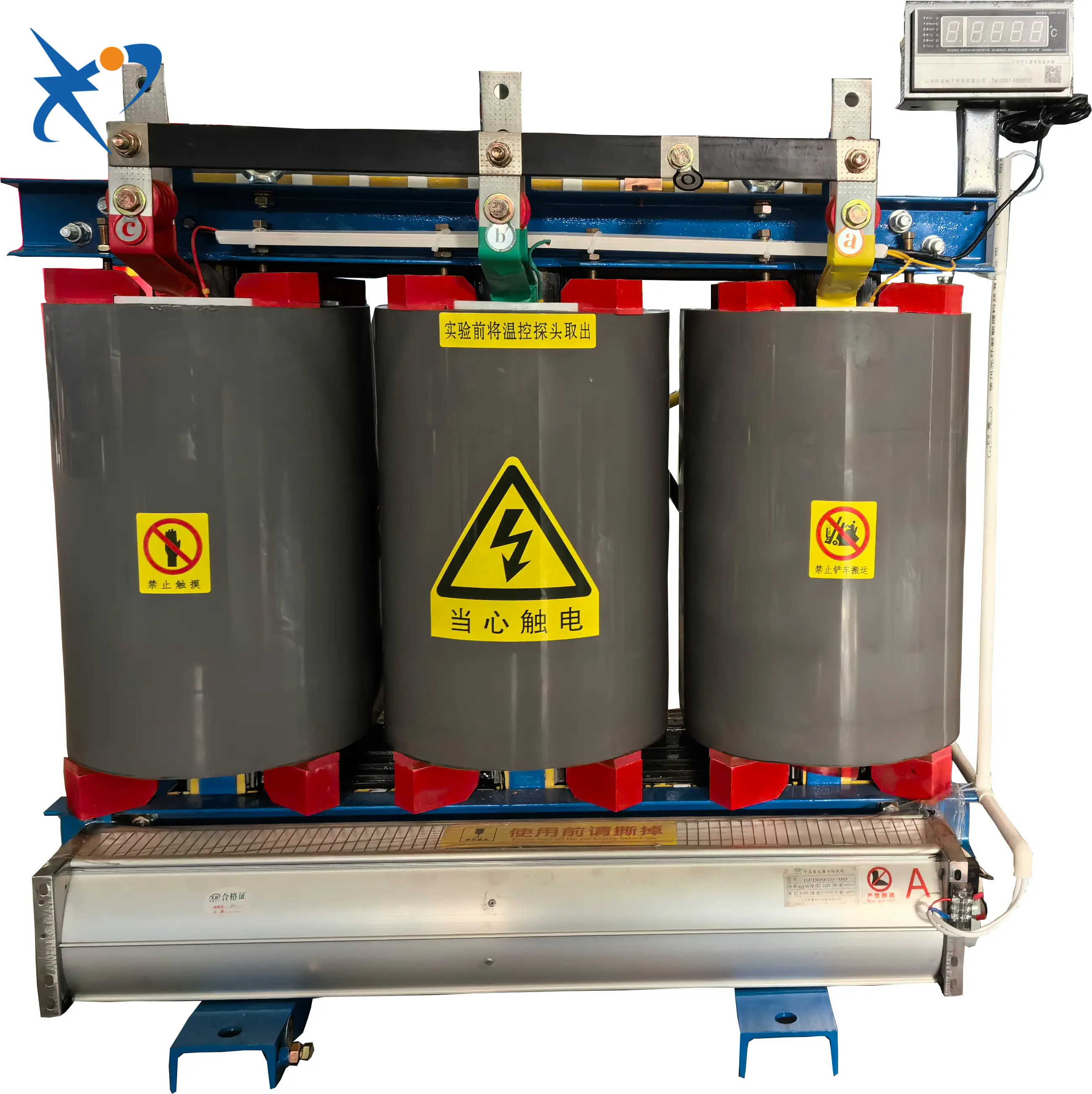

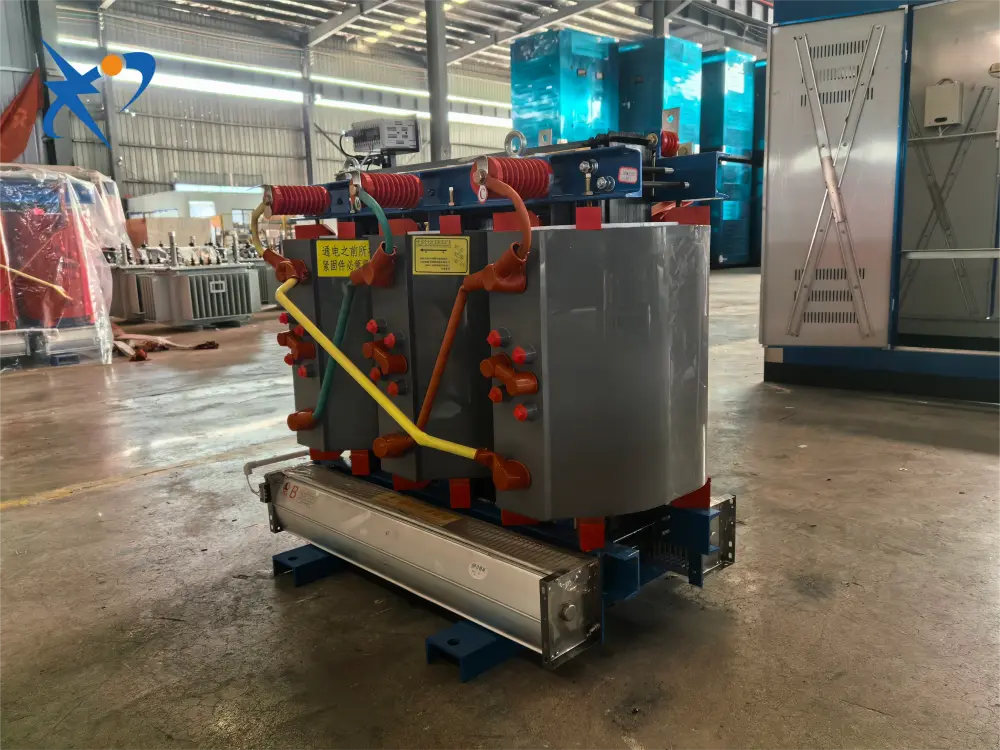

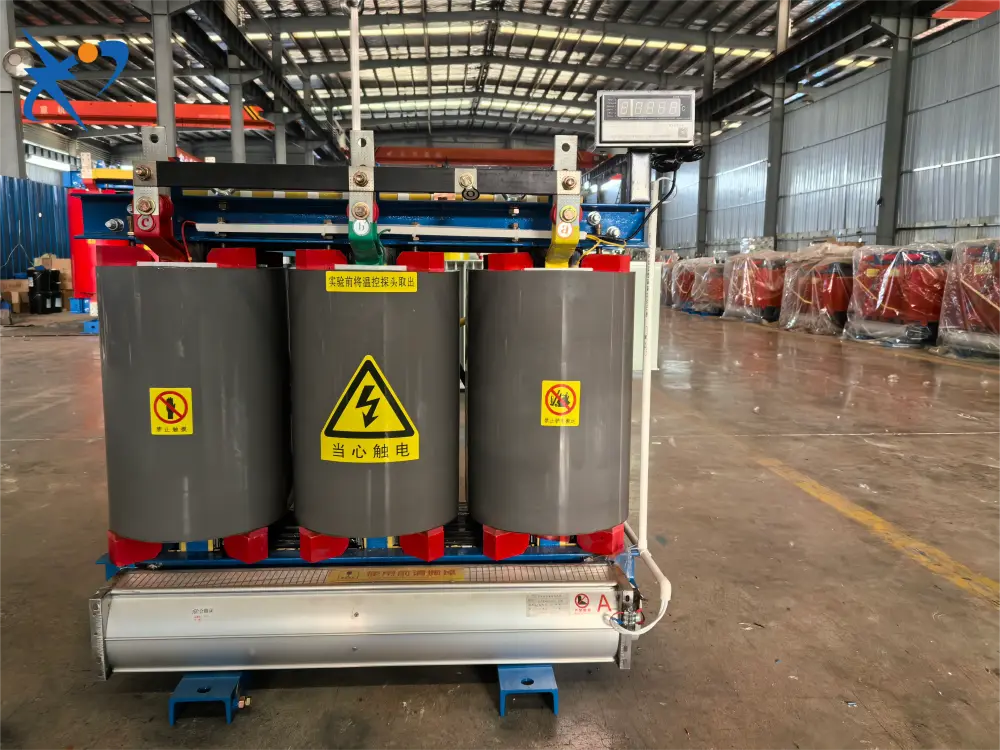

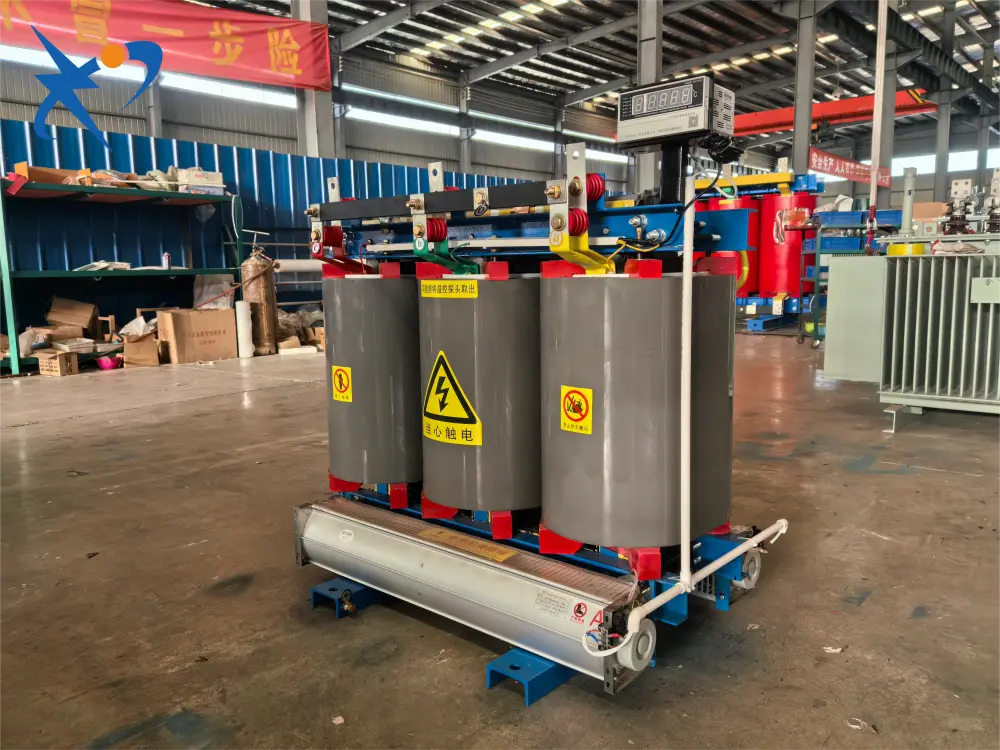

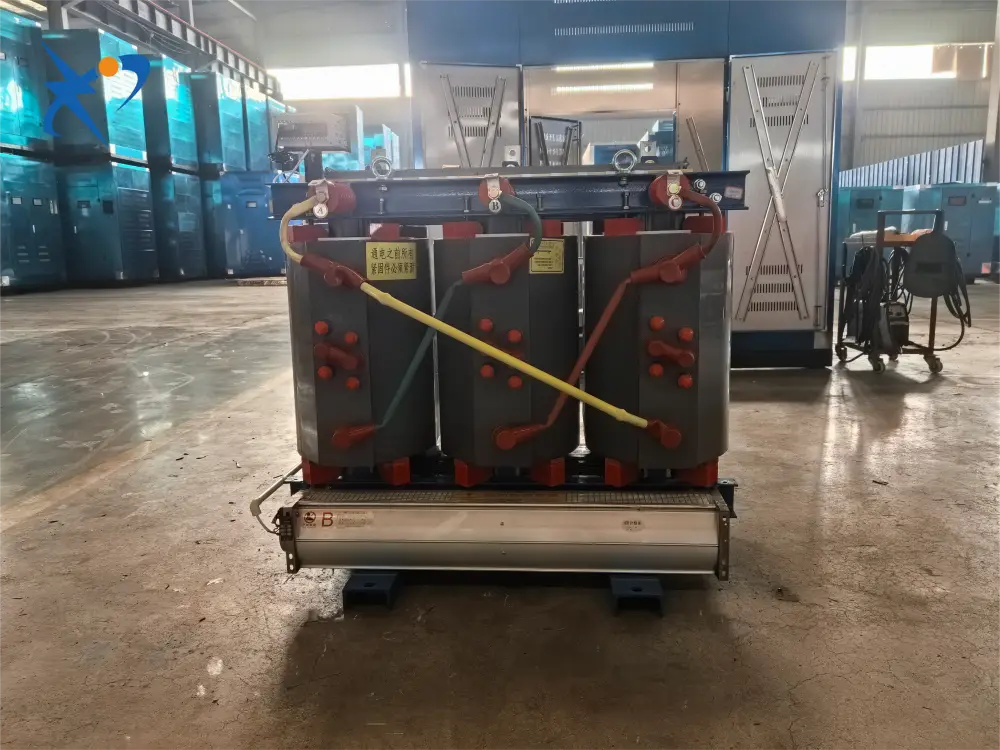

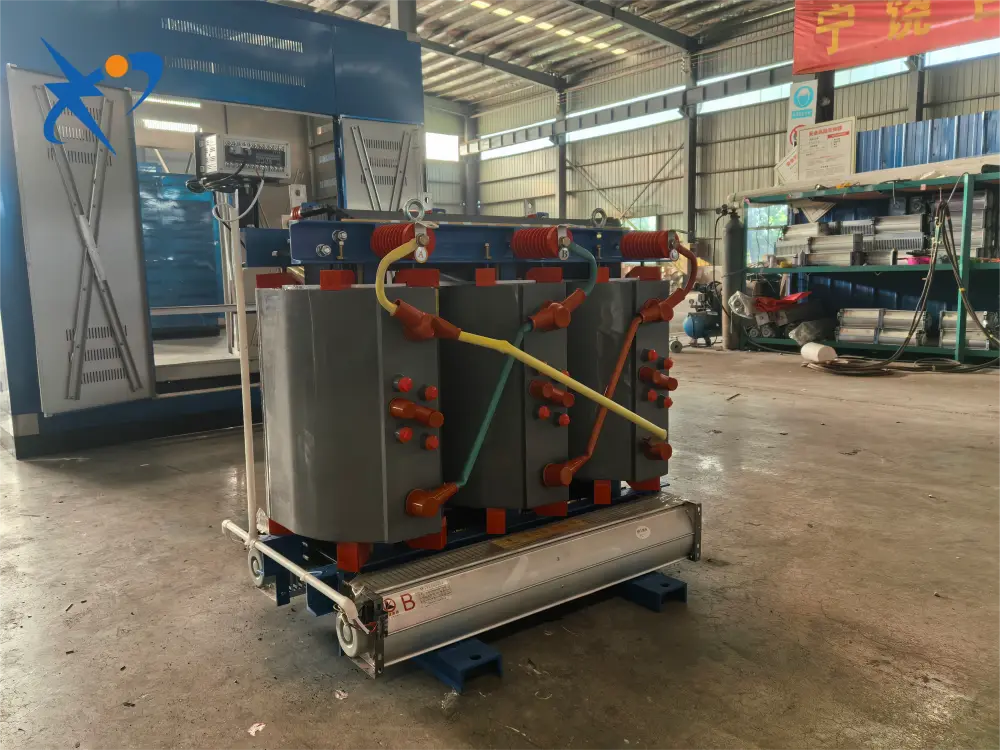

Product Display
Our values:
All this process is certified under the strictest quality standards
Design
- Guarantee of accurate temperature rise in windings; in case of enclosure IP/20/21/23/30/31/40/41, there is no de-rating
- Low working temperatures down to -40°C
- Possibility to include any kind of accessories such as rollers, fans, temperature controllers and etc.
- Insulation class F, H (optional)
- C3, E3, F1 certification (optional)
Technology
- Aluminum, copper foil disk, or other materials in high voltage winding
- Aluminum, copper foil, or other materials full width in low voltage winding
- Casting under vacuum
- Low partial discharge values <10 pc
- Smooth surface
- Self-extinguishing
- Dust resistance due to sealed coils (optional)
- Silicon free (optional)
- Low induction level and step lap configuration, granting lower noise level
- High impulse voltage withstand
- High short circuit withstand (radial and axial)
- Reduced footprint
Customized solutions:
Meet customer’s various demands
Design options
- Reduced loss transformers
- Copper/ Aluminum windings
- Low voltage transformers
- Class H transformers
- Reduced temperature rise
- Multiple primary voltage
- Multiple secondary windings
- Multi winding transformers (2, 3, 4, or 5 on the same core)
- Encapsulated low voltage windings
- Sealed or casted low voltage winding
- Impregnated high voltage windings
- Different location of high and low voltage connection terminals: top and bottom, both on the same side
- Special connection groups
- Variable speed drives (VSD), rectifiers, and excitation transformers for 6, 12, 18, and 24 pulses
- Different coupling factors from 0.15 up to 0.9
- Earthing transformers
- Seismic and vibration reinforcement system
- Outdoor operation
- Offshore applications
- Reduced footprint
Accessories
Enclosure IP20/21/2/23/30/31/40/41 (optional
Temperature monitor)
Antivibration pads
Space heaters
Electrostatic screen
Current transformers on primary and secondary windings
Plug in bushings
High voltage earthing switch
Surge arrestors (for high and low voltage)
Cooling fans with up to 40% power increase
On load tap-changers (OLTC)
Flexible terminals
Connection box
Bidirectional wheels
Different IP/NEMA enclosures with cable or bus-duct connection
Earthing bullets
Lifting and pulling lugs
Voltage detectors
Voltage automatic regulator (VAR)
Special packings
Cable boxes Containerized solutions
