Efficient and Reliable Power

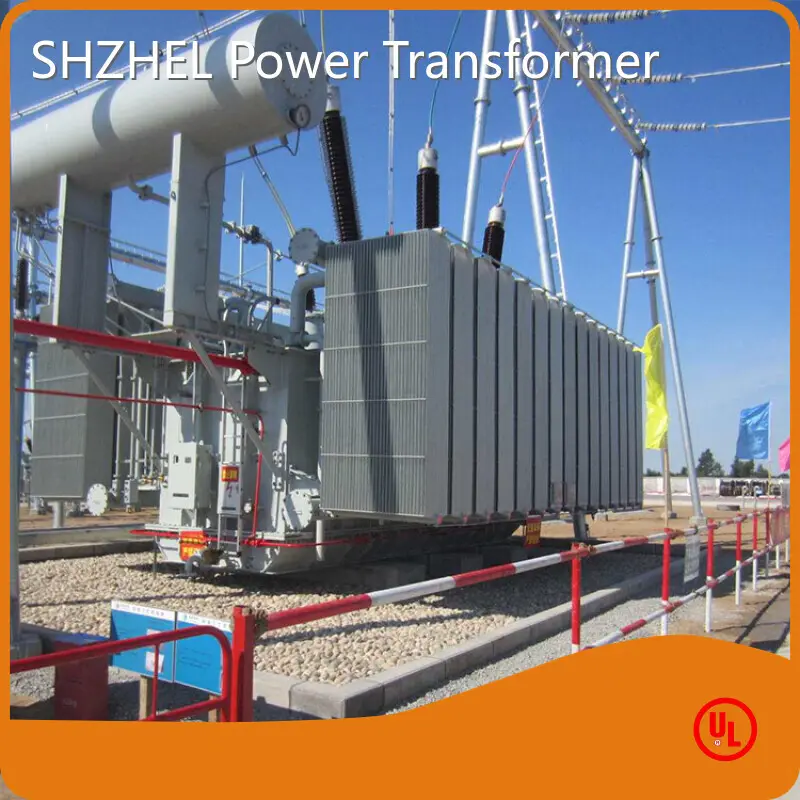

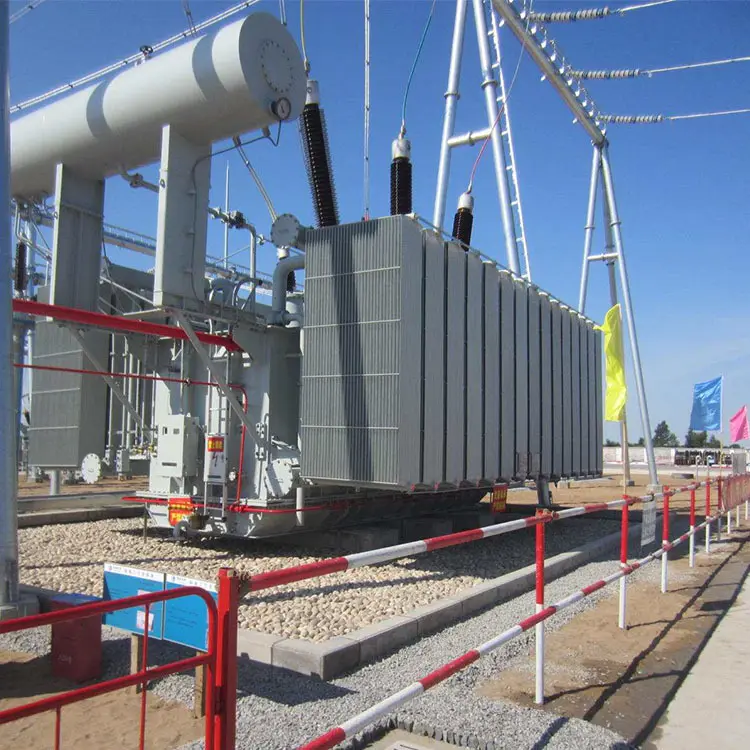

High-quality 110KV power transformer with 6MVA to 250MVA capacity, featuring advanced technology for optimal design and enhanced reliability. Utilizing high-quality materials such as CRGO Slicon Steel and Copper Winding for improved stability and durability. Built with a fully sealed bell jar structure oil tank and chip radiator cooling device for high heat dissipation efficiency and mechanical strength.

High Capacity Power Transformers

The 110KV 132KV 138KV 220KV power transformer has a rated capacity ranging from 6MVA to 250MVA and adopts advanced technology to optimize the design of its core, coil, body, lead wire, and oil tank. It features low loss, low partial discharge, low noise, and high reliability, with a 20% reduction in no-load loss and a 5% reduction in load loss compared to the standard. The transformer utilizes high-quality cold-rolled silicon steel core, twisted continuous or internal shielding winding structure, rounded body insulation, and a fully sealed bell jar structure oil tank with a corrugated folded plate design for enhanced mechanical strength and heat dissipation efficiency.

Material Introduction

The core of the 110KV 132KV 138KV 220KV power transformer is made of high-quality cold-rolled silicon steel sheet, enhancing its stability and short-circuit capability. The winding features a twisted continuous or internal shielding structure, improving impulse voltage distribution and overall impulse characteristics. With a fully sealed bell jar structure and corrugated folded plate design, the oil tank of the transformer ensures high mechanical strength and efficient heat dissipation.
