Power Transformer Copper by SHZHEL

Efficient, reliable distribution transformer

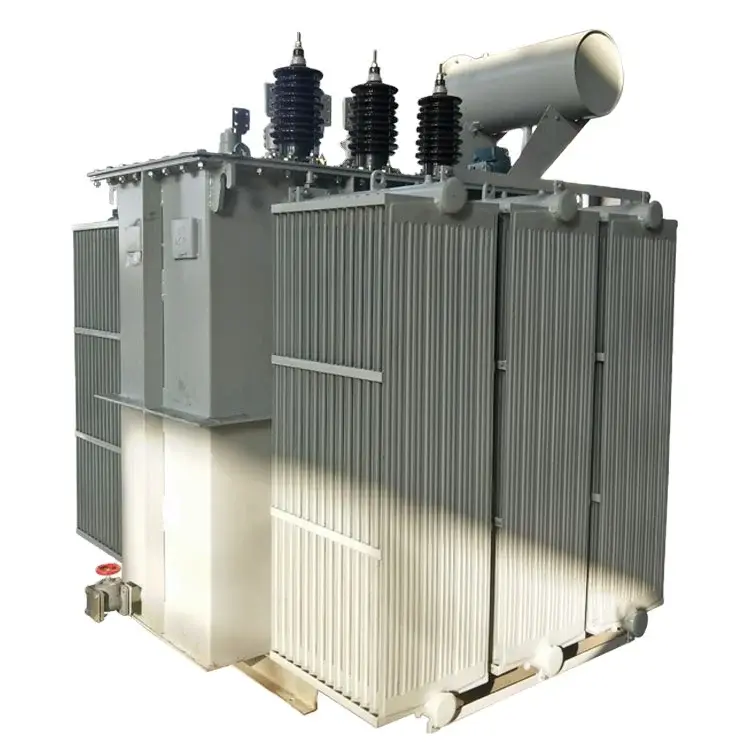

Highly efficient and reliable 1000kva 15kv 160kva Oil Immersed Distribution Power Transformers featuring low loss, low partial discharge, low noise, and high stability. Crafted with high-quality materials including cold-rolled silicon steel core and twisted continuous winding for enhanced impulse voltage distribution. Fully sealed bell jar oil tank structure with chip radiator cooling device for efficient heat dissipation and durable performance.

High-Power Oil Immersion Transformer

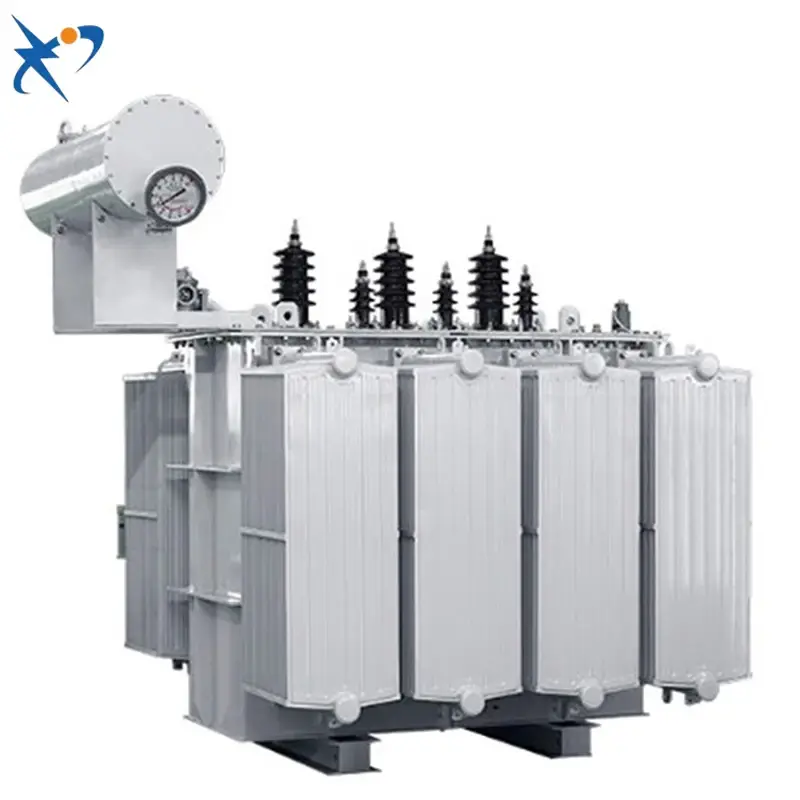

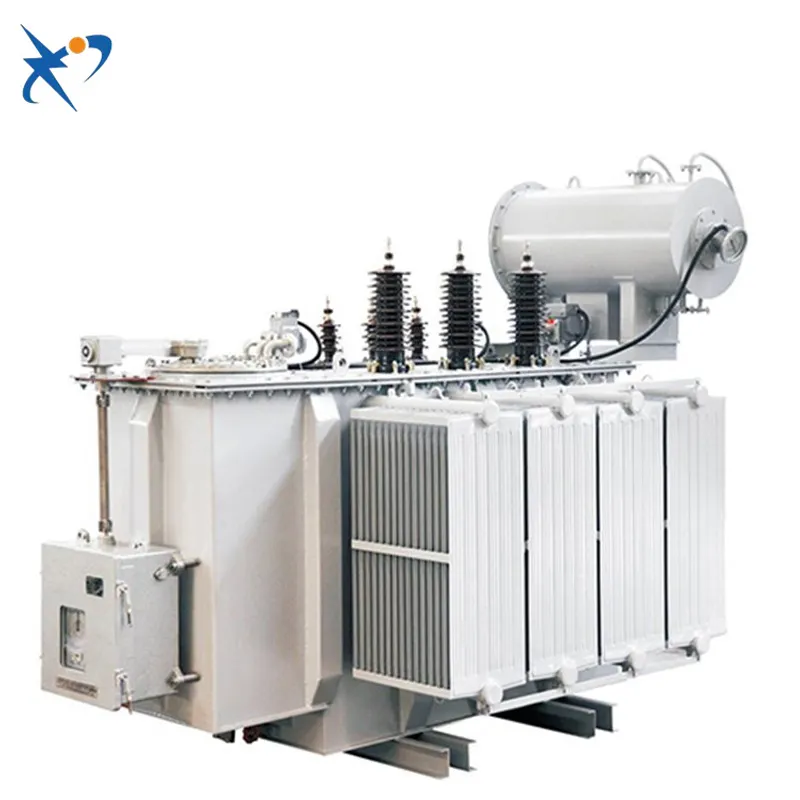

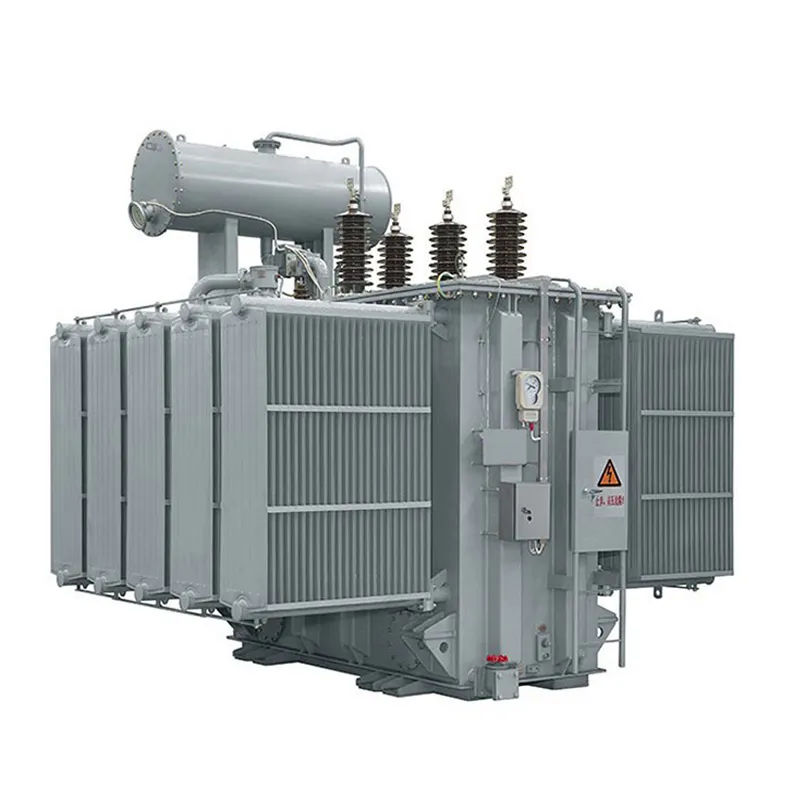

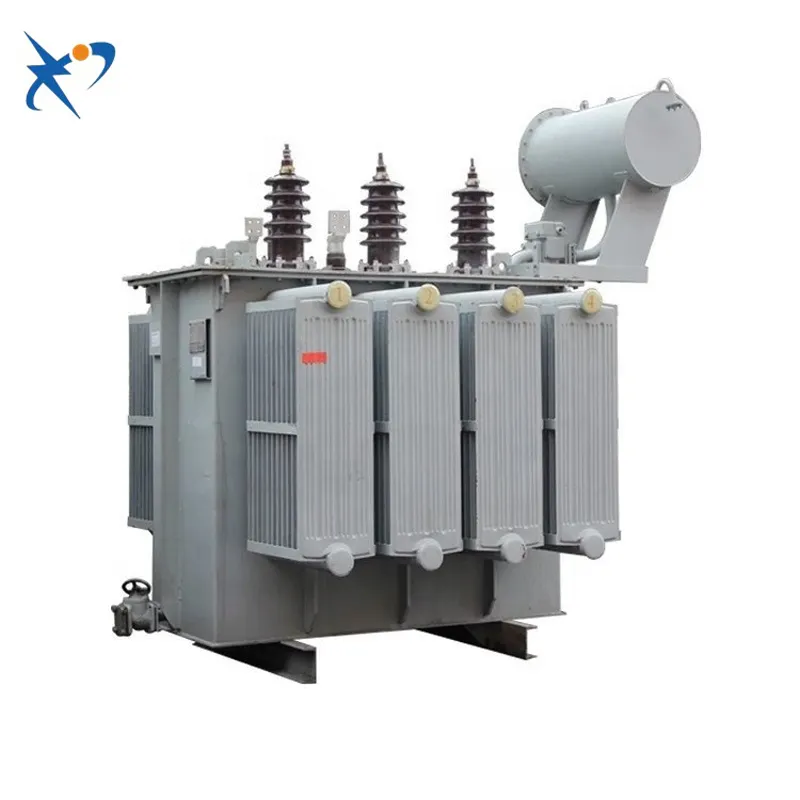

The 110KV 132KV 138KV 220KV power transformer features a high-voltage range of 110KV or 132KV or 138KV or 220KV and a rated capacity of 6MVA to 250MVA, meeting standards such as IEC, ANSI, CSA, BS, GB. With a core and winding material of CRGO Silicon Steel Metal Core and Copper Winding, this transformer boasts low loss, low partial discharge, low noise, and high reliability, providing a 24-month guarantee period. The oil-immersed transformer's structure includes a high-quality core material, twisted continuous winding structure, rounded insulation parts, and a fully sealed bell jar oil tank with a chip radiator cooling device for high heat dissipation efficiency.

Material Introduction

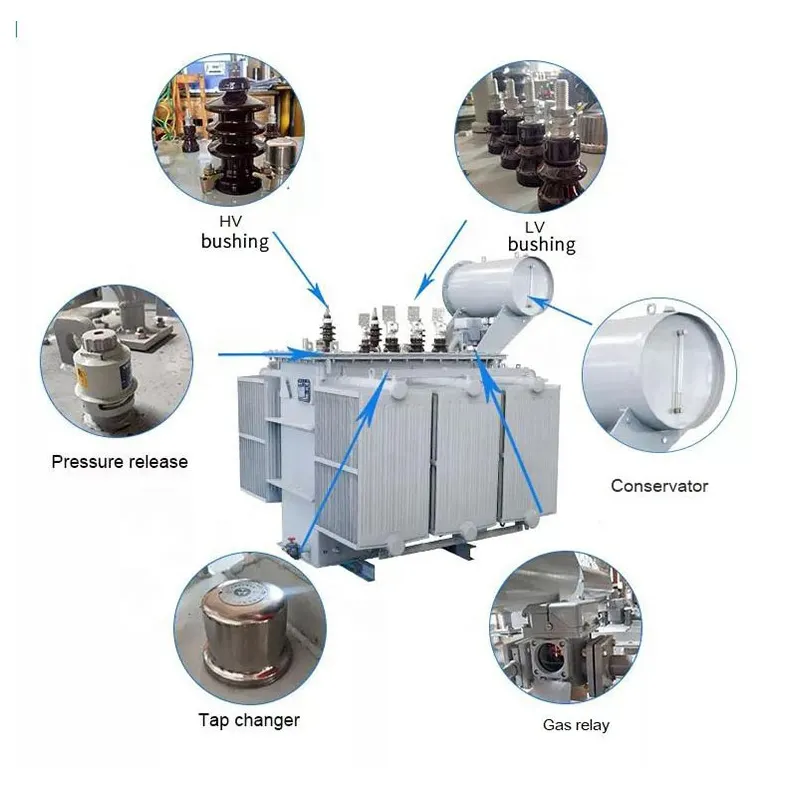

The core of the 110KV 132KV 138KV 220KV power transformer is made of high-quality cold-rolled silicon steel sheet, enhancing the transformer's ability to withstand short circuits. The winding features a twisted continuous or internal shielding structure, improving impulse voltage distribution for better impulse characteristics. The body insulation includes rounded insulating parts and high-strength insulating pressing plates to reduce local discharge, while the oil tank has a fully sealed bell jar structure with a chip radiator cooling device for efficient heat dissipation.
